Easy Progress Bar

This addon let you to create progress bar easy by using geometry nodes.

This is for Blender 3.1 only.

日本語のサイト(Japanese)

・Installation

• download zip file, do not unzip it.
• go to Blender’s user preference,open the Add-ons tab
• click Install and select the zip file.
• check the box next to its name to enable it.

・How to use

---Create ---

• in 3D Viewport,press N to open side panel.
• select tab named "EZProgBar".
• Press "Create".

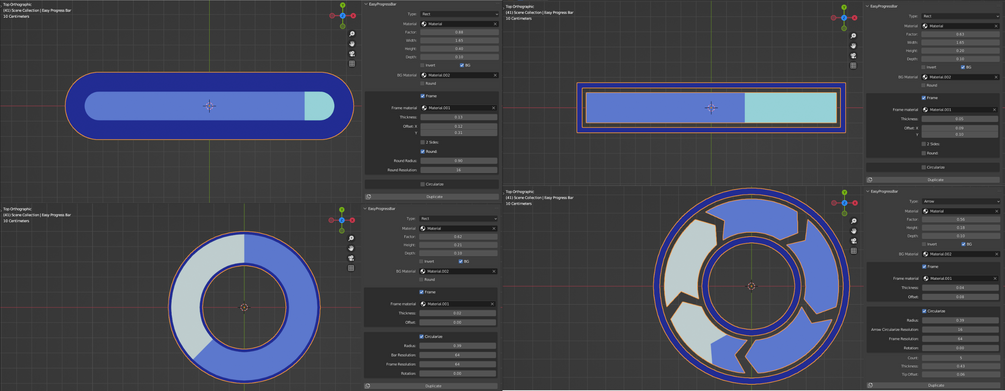

---Edit---

• if you selected object that is created with this addon,the side panel will change for edit the progress bar.

---Parameters---

• Type: Bar type(Rect/Scaling Circle/Arrow).
• Material: Bar's material.
• Factor: Bar's progression(0 to 1).
• Width
• Height(if Type is Rect or Arrow)
• Depth
• Invert: Invert Factor's direction.
• BG: Show BG.
• BG Material(If BG is on): BG's material.
• Round: Make bar's corners round
• Round Radius(if Round is on): If it is 0, it will be square, and the larger the value, the more round it will be(No change above the limit).
• Round Resolution(if Round is on): Corners' resolution.

• Frame: Show Frame.
• Frame Material: Frame's material.
• Thickness: Frame's thickness.
• Offset: How far away from the bar.
• 2 Sides: Make the frame only up and down.
• Round: Same as above.
• Round Radius: Same as above.
• Round Resolution: Same as above.

• Circularize: Make bar circular.
• Radius
• Bar Resolution(if Type is Rect): Larger value,bar will be more smooth.
• Arrow Resolution(if Type is Arrow): Larger value,arrow will be more smooth.
• Frame Resolution(if Frame is on): Larger value,frame will be more smooth.
• Rotation: Rotate(0 to 1)

• Count(if Type is Scaling Circle or Arrow): Circle or Arrow count.
• Circle Resolution(if Type is Scaling Circle)
• Circle Radius(if Type is Scaling Circle)
• Individual Rotation(if Type is Scaling Circle): Each circle's rotation(0 to 1).
• Step Interval(if Type is Scaling Circle): Misalignment of the timing of the circle when changing the Factor. Smaller value,less misalignment of the timing.
• Thickness(if Type is Arrow): Arrow's thickness.
• Tip Offset(if Type is Arrow): Shift the tip of the arrow.

※If you wanna duplicate progress bar object,pressing shift + D will create object that parameter is linked.

Pressing duplicate button in EZProgBar,parameter isn't linked.

・License

The license follows CC-BY-SA.

This contains geometry node groups in Free GN Presets made by Bradley_Animations.
